Aluminium Ferrule / Aluminium

+ Contactus us
PREV：Oculus Flandrus Steel FerruleDEINDE：Aluminium Hourglass manicas
  • Parameter
  • Aliae Descriptiones
  • Contact
Technical Data
Modus Funis filum dia (mm) Dimensio aluminii manicae (mm) Longitudo (mm) Pondus  (g)
A B C D
XTO-1 1 3 4.3 1.3 2.6 5 0.11
XTO-1.5 1.5 3.5 5.3 1.8 3.6 6 0.21
XTO-2 2 4.5 6.9 2.4 4.8 7 0.24
XTO-2.5 2.5 5.1 8.1 3 6 9 0.5
XTO-3 3 6.1 9.6 3.5 7 11 0.84
XTO-3.5 3.5 7 11 4 8 13 1.32
XTO-4 4 7.9 12.4 4.5 9 14 1.81
XTO-4.5 4.5 8.9 14 5.1 10.2 16 2.61
XTO-5 5 9.8 15.4 5.6 11.2 18 3.57
XTO-6 6 11.6 18.2 6.6 13.2 21 5.86
XTO-6.5 6.5 12.6 19.8 7.2 14.4 23 7.85
XTO-7 7 13.6 21.4 7.8 15.6 25 9.53
XTO-8 8 15.4 24.2 8.8 17.6 28 13.7
XTO-9 9 17.3 27.2 9.9 19.8 32 19.8
XTO-10 10 19.1 30 10.9 21.8 35 26.4
XTO-11 11 21.1 33.2 12.1 24.2 39 35.8
XTO-12 12 23 36.2 13.2 26.4 42 45.8
XTO-13 13 25 39.2 14.2 28.4 46 59.7
XTO-14 14 26.9 42.2 15.3 30.6 49 73.5
XTO-16 16 30.9 48.4 17.5 35 56 111
XTO-18 18 34.8 54.4 19.6 39.2 63 159
XTO-20 20 38.5 60.2 21.7 43.4 70 217
XTO-22 22 42.7 67 24.3 48.6 77 292
XTO-24 24 46.4 72.8 26.4 52.8 84 376
XTO-26 26 50.3 78.8 28.5 57 91 481
XTO-28 28 54.5 85.4 31 62 98 603
XTO-30 30 58.1 91.2 33 66.2 105 735
XTO-32 32 62 97.2 35.2 70.4 112 897
XTO-34 34 66.2 104 37.8 75.6 119 1082
XTO-36 36 69.8 109.6 39.8 79.6 126 1275
XTO-38 38 73.5 115.4 41.9 83.8 133 1503
XTO-40 40 77.2 121.2 44 88 140 1734
XTO-42 42 81.2 127.4 46.2 92.4 147 2024
XTO-44 44 85 133.4 48.4 96.8 154 2314
XTO-46 46 89 139.6 50.6 101.2 161 2662
XTO-48 48 92.8 145.6 52.8 105.6 168 3010
XTO-50 50 96.6 151.6 55 110 175 3412
XTO-52 52 100.4 157.6 57.2 114.4 182 3813
XTO-54 54 104.4 163.8 59.4 118.8 189 4293
XTO-56 56 108.2 169.8 61.6 123.2 196 4772
XTO-58 114.4 179.6 65.2 130.4 203 5430
XTO-60 210 5617

Our Products
Related products
Societas
Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd.
Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd.
As Aluminium Sleeve Manufacturers and Sleeve Aluminium Company, Jiangsu Xingtai Hydraulic Manufacturing Co., Ltd. was founded in 1992 and is located in Taizhou City, Jiangsu Province, China. The company specializes in manufacturing hydraulic wire rope pressing machines, wire rope annealing and tapering machines, aluminum sleeves, and lifting clamps. Xingtai Hydraulic is equipped with advanced production facilities, strong technical capabilities, authoritative testing equipment, and a comprehensive quality management system.

Xingtai machinarum hydraulicarum machinarum suggillatio ex alto roboris mixturae ferro fabricatae sunt. Machina corpus ex uno lapide materiali fabricatur, ut structurae integritas et longae vitae servitus. Nostrae systemata hydraulica utendum est duplicem pressionem sentinam olei systematis copiae, quae motum sursum et deorsum tenet, dum processus pressionis lenis invigilat. Hoc consilium significanter melius urget qualitatem et efficientiam productionis.

Machinae Hydraulicae Xingtai multis regionibus exportatae sunt, inter UK, Australiam, in Belgio, Lettonia, Malaysia, Thailandia, India, Russia, Botsuana, Polonia et aliis.

Philosophia ductus "altae qualitatis, competitive pretium, et perennis curae", studemus ut elitrum nostrorum necessitatibus occurrere ac optime inservire studeamus. Dedicati manemus serviendi clientibus tam existentibus quam novis, eodem excellentiae gradu, dum simul ad felicem futuram aedificandam operam dabimus.
Testimonium Honoris
  • Testimonia
  • Testimonia
  • Testimonia
News
  • Steel Wire Rope Press Machine | Sina Hydraulica Manufacturer

    Quid a Ferro Wire Funem Press Machina Est et quomodo operatur Funis filum chalybeum machina torcularis est machina hydraulica quae manicam in filum filum comprimit aluminium vel chalybeum formans terminationem continuam coactam ad colligendas, armamenta, et structuris fune...

    READ MORE
  • What Is the Hydraulic Wire Rope Press Machine?

    What Is the GT-100 Hydraulic Wire Funis Press Machina (C Frame)? The GT-100 Hydraulic Wire Funis Press Machina (C Frame) Est compacta hydrau filum funem torcular machina constructa ad swage ferro filum funem cum diametro range of 1mm ad 10mm . Sedet intra C...

    READ MORE
  • What Is the GT-60 Hydraulic Wire Rope Swage Press Machine?

    Quid est GT-60 Hydraulic Wire Rope Swage Press Machina (C Frame)? The GT-60 Hydraulic Wire Rope Swage Press Machina (C Frame) Est foedus hydrau torcular aedificatum swage ferro filum funem cum diametro rhoncus 1mm ad 10mm . Minimissimum exemplar est in seri...

    READ MORE
Industria scientia

1. Quid est Aluminium Sleeve in Wire Funis Applications

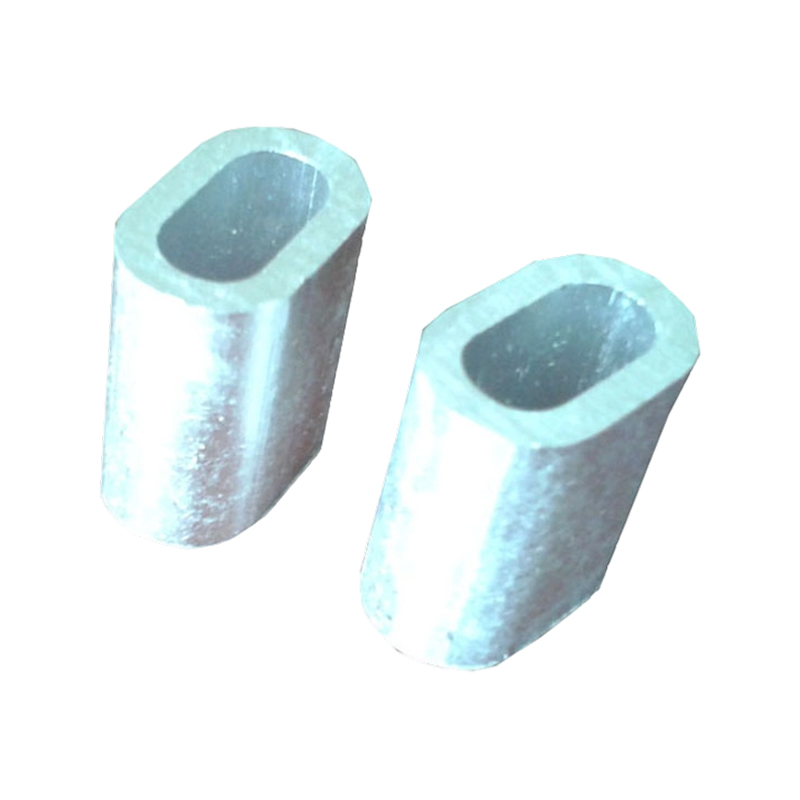

An aluminium sleeve (also known as an aluminium ferrule) est metallum cylindricum conveniens e summo gradu 6061-T6 aluminii mixturae factae, destinata ad crimp et securae funiculi extremitates, loramenta, seu toros. In systematibus filis funiculi permanentem, altum robur connexionem creat, qui impedit, lapsus fune vel defectio sub onere. Aluminium-gradus distrahentes manicas industriae robur habent 207 MPa ac retinere potest usque ad 90% funiculi primi roboris fractionis in cum recte olentes.

(1) Core Design and Material Traits

Aluminium manicas ad funiculi filum praecise machinatae cum muri crassitudine vndique a 1.2mm ad 8mm (diametris 1mm-50mm adaptans funiculum). 6061-T6 aluminium stannum praebet corrosionem resistentiam (salsi imbrem test passum rate ≥95% post 1000 horas) et ductile, permittens uniformis deformationem in crimping ut funem stringat sine laesione.

Aluminium Sleeve Wall Crassitudo Wire Funis Diameter 0mm 2mm 4mm 6mm 8mm 1-5mm Funis (1.2mm Wall) 6-15mm Funis (3mm Wall) 16-30mm Funis (5mm Wall) 31-50mm Funis (8mm Wall)

2. Applicationes Claves Aluminii Manicas in Filo Funis Systems

Aluminium manicae necessariae sunt in industriis freti integritate filum funiculi, cum applicationibus formandis ad requisita onera et condiciones environmentales;

  • Construction & Elevatio: Impetrandum filum funium in grues (onus facultatem ad 50 tonnes ) et spartum, ubi manicas olentes aluminium obviam OSHA signa tuta.
  • Marinus & Offshore: Corrosio-repugnans manicas pro funibus retinaculis (expositio saltwater) cum vita servitii 8-10 annis in marinis ambitibus.
  • Aerospace & Aviation: Manicas leves ad retinaculum cinematographicarum (pondus ≤0.5kg/m) cum accuratione inurunt tolerantiae ± 0.1mm.
  • Vestibulum industrialis: Conveyor systemata et tractatio materialis, ubi manicae resistunt onera cyclica usque ad 10,000 circuitus sine lassitudine deficiendi.
Aluminium Sleeve Ritus ab Industry 0% 20% 40% 60% 80% Construction Marine Aerospace Vestibulum 60% 40% 30% L%

3. euismod Comparatio: Aluminium Manicas Alternative Ferrules vs

Conveniens Type Retention virtus Corrosio Resistentia Pondus (per 100mm)
Aluminium Sleeve (6061-T6) Funem de% XC Fortitudo Praeclarus 120g
Aeris Ferrule XCV% of Funis fortitudo bonum 380g
Steel Ferrule Funis fortitudo XCVIII% Superior 450g
Effectus et Pretium Comparison of Wire Funis Ferrules CRIMP Pressure vs. Fortitudo retentionis Rate Aluminii manicas 60% 70% 80% 90% 5 Ton 10 Ton 15 Ton 20 Ton 25 Ton 65% 75% 85% 90% 90%

4. Saepe Interrogata

Q1: Quid pro aluminio manicas inurit pressio requiritur?

A: Pro 1-15mm funiculorum filum, minimum pressio inurit 15 tonnes ad consequi 85% vires retentionis requiritur; 16-50mm funes opus 20 tonnes (non addito supra 25 millia amphoras).

Q2: An aluminium manicas reddi?

A: No. Semel olentes, aluminium manicae permanentem deformationem subeunt - reuse vires retentione minuit 40% per ASME B30.9 signa et pericula salutis opposuit.

Q3: Quomodo inspicere manicas olentes aluminium?

A: Moderare pro uniformis deformatio (non rimas) et metiretur crimped-diameter sit 60-70% of the original sleeve diameter . Ultrasonica probatio commendatur in applicationibus criticis (e.g., aerospace).

Q4: Quid est vita aluminii manicas fasciae?

A: Cum in siccis conditionibus repositae (≤60% humiditas), manicae aluminii incruentas fasciae vitam habent. V annis ; superficies oxidatio ultra hanc periodum integritatem inuram reducit per 10-15%.
